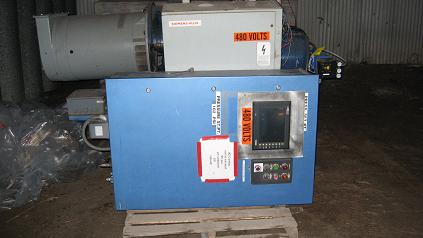

Centac Air Compressor (SOLD)
Item ID
577
Category
Miscellaneous
Model Number
C1M02
Serial Number
M85-3581
Asset ID
09N-003
Manufacturer
Centac
Condition Code
Used
UOM
Each
Quantity
0
Division
AEP - PSO
Equipment Location
NORTHEAST STATION - 1 & 2 - Oologah , OK
RPM
3565 RPM Minimum
Type/Size
250 KW
Horse Power
300 Nominal
Manufacture Year
1986
Volts
460
HZ
60
Phase
3
Condition Code
Used
Short Equipment/Material Description
Centac Air Compressor
Current Condition: The compressor was in running condition when removed from service.
Model Number: C1M02
Serial Number: M85-3581
Year Built: 1986
Compressor Design Conditions:
Mfg - CENTAC
Gas Air
Nominal Inlet Capacity 1000 ICFM
Barometric Pressure 14.4 PSIA
Inlet Pressure 14.1 PSIA
Relative Humidity 60%
Inlet Temperature 95 deg F
Discharge Pressure 125 PSIG
Rate Speed 3565 RPM Minimum
Cooling Water Inlet Temperature (Max)105 deg F
Instrument Air (clean, dry)80-150 PSIG
Minimum Instrument Air Flow 10 SCFM
Water Pressure (Max)75 PSIG
Water Pressure (Min)35 PSIG
Water Flow Required:
Air & Oil Cooler Combined 135 GPM Minimum
Water Pressure Drop (max)15 PSIG
Air Cooler Approach Temp (CTD)
1st Stage 12 deg F
2nd Stage 14 deg F
Maximum Oil Cooler Working Pressure
Tube Side 150 PSIG
Shell Side 90 PSIG
Oil Reservoir Capacity 40 Gallons
Seal Air Requirements
Seal Air Pressure (Max) 15 PSIG
Seal Air Pressure (Min.)3 PSIG
Motor Data:
Mfg SCHORCH
Voltage 460
Cycle 60
Horsepower 250 KW (300 HP Nominal)
Type Induction
Speed (RPM)3565 minimum
Service Factor 1/15
This item is being sold as is where is.
Model Number: C1M02
Serial Number: M85-3581
Year Built: 1986
Compressor Design Conditions:
Mfg - CENTAC
Gas Air
Nominal Inlet Capacity 1000 ICFM
Barometric Pressure 14.4 PSIA
Inlet Pressure 14.1 PSIA
Relative Humidity 60%
Inlet Temperature 95 deg F
Discharge Pressure 125 PSIG
Rate Speed 3565 RPM Minimum
Cooling Water Inlet Temperature (Max)105 deg F
Instrument Air (clean, dry)80-150 PSIG
Minimum Instrument Air Flow 10 SCFM
Water Pressure (Max)75 PSIG
Water Pressure (Min)35 PSIG
Water Flow Required:
Air & Oil Cooler Combined 135 GPM Minimum
Water Pressure Drop (max)15 PSIG
Air Cooler Approach Temp (CTD)
1st Stage 12 deg F
2nd Stage 14 deg F
Maximum Oil Cooler Working Pressure
Tube Side 150 PSIG
Shell Side 90 PSIG
Oil Reservoir Capacity 40 Gallons
Seal Air Requirements
Seal Air Pressure (Max) 15 PSIG
Seal Air Pressure (Min.)3 PSIG
Motor Data:
Mfg SCHORCH
Voltage 460
Cycle 60
Horsepower 250 KW (300 HP Nominal)
Type Induction
Speed (RPM)3565 minimum
Service Factor 1/15
This item is being sold as is where is.
