vertical shaft pumps and motors (SOLD)
Item ID
1569
Category
Motors & Reducers
Serial Number
75-3966-1, 75-3966-2, HLJ813124 and HLJ813125
Asset ID
14K-094
Manufacturer
Floway and General Electric
Condition Code
Used in working condition
UOM
Lot
Quantity
0
Division
AEP - PSO
Equipment Location
COMANCHE STATION - LAWTON , OK
Condition Code
Used in working condition
Short Equipment/Material Description
vertical shaft pumps and motors

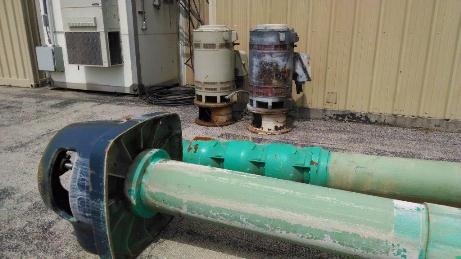

Two (2) vertical shaft pumps and motors and one (1) motor control cabinet.
Pumps, motors and motor control cabinet will be sold as one Lot to one buyer.
HTML Editor Sample Page
The length of the pump from the bottom of the base plate to the intake screen is 21 ft.
No information is currently available on the motor control cabinet.
Pumps, motors and control cabinet were in working condition when taken out of service in January 2014.
Pumps, motors and control cabinet are located in Lawton, OK and are sold "AS IS, WHERE IS".
Pumps, motors and motor control cabinet will be sold as one Lot to one buyer.
| Floway intake pumps: | ||
| Pump 1 | Pump 2 | |
| Serial no. | 75-3966-1 | 75-3966-2 |
| No. stages | 3 | 3 |
| Pump size/type | 16HMC | 16MLK |
| RPM | 1750 | 1775 |
| Impeller trim dia. | 11.062 | 11.0625 |
| Head | 402.9 ft. | 227.7 ft. |
| Flow | 2995 | 3000 |
| General Electric induction motors: | ||
| Motor 1 | Motor 2 | |
| Model | 5K6286XH574A | 5K6286XH574A |
| Serial no. | HLJ813124 | HLJ813125 |
| HP | 250 | 250 |
| Service Factor | 1.15 | 1.15 |
| Type | K | K |
| Frame | 6286P24 | 6286P24 |
| Volts | 480 | 480 |
| Cycles | 60 | 60 |
| Phase | 3 | 3 |
The length of the pump from the bottom of the base plate to the intake screen is 21 ft.
No information is currently available on the motor control cabinet.
Pumps, motors and control cabinet were in working condition when taken out of service in January 2014.
Pumps, motors and control cabinet are located in Lawton, OK and are sold "AS IS, WHERE IS".
