Allis Chalmers Generator (SOLD)
Auction ID
1081
Status
Closed
Type
Standard (PQT)
Started
5/16/2011 10:12 AM EST
Ended
5/31/2011 1:00 PM EST
Quantity
0
Minimum Bid Increment
$10.00
Manufacturer
Allis Chalmers
Division
AEP - Indiana & Michigan
Equipment Location
MUNCIE
- MUNCIE
, IN
Details
Asset ID
11K-061
Manufacturer
Allis Chalmers
UOM
Each
Condition Code
Used needs repairs

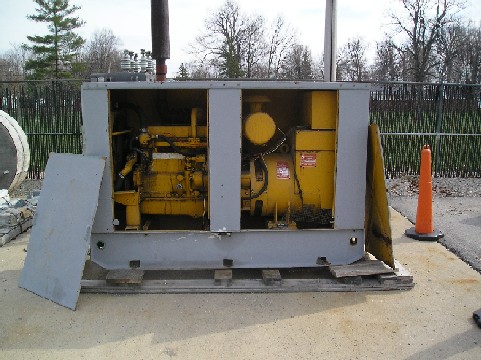

One (1) Allis Chalmers (engine)/ Kurz & Root Brushless AC Generator
Diesel generator
1947 vintage
Approximate weight = 3778 lbs.
Allis Chalmers engine: model 3500; Order # 1-7451-63281
Generator was used as a back up service generator in a substation.
Known Concerns:
The engine is in need of a rebuild; possible bad head gasket or in need of new sleeves. The generator has no known concerns.
The concerns are what have been observed by the business unit using the generator and have not been validated by an expert. Areas not listed as concerns does not imply any warranty as to life or condition and only imply that concerns were not noticed by the business unit user.
AEP can load Buyer's truck if needed.
The generator is located in Muncie, Indiana and is sold "as is, where is".
Diesel generator
1947 vintage
Approximate weight = 3778 lbs.
| Type | BGKB |
| KW | 75 |
| PF | 0.8 |
| KVA | 93.75 |
| AMPS | 225 |
| Volts | 120/240 |
| Phase | 3 |
| Wire | 4 |
| Cycles | 60 |
| RPM | 1800 |
| Frame | 503 |
| Leads | 12 |
| Insul Class | F |
| Temp Rise | 70 C |
| Duty | Continuous |
| Overload Cap. | 90 KW |
| Model | E2019E2030M1326 |
| Serial no. | 503A70-9136N1 |
| Control spec. | CS-193 |
Allis Chalmers engine: model 3500; Order # 1-7451-63281
Generator was used as a back up service generator in a substation.
Known Concerns:
The engine is in need of a rebuild; possible bad head gasket or in need of new sleeves. The generator has no known concerns.
The concerns are what have been observed by the business unit using the generator and have not been validated by an expert. Areas not listed as concerns does not imply any warranty as to life or condition and only imply that concerns were not noticed by the business unit user.
AEP can load Buyer's truck if needed.
The generator is located in Muncie, Indiana and is sold "as is, where is".
Product Photos
